"SAIL CAT"
VENTURE 15 MODIFICATIONS
As I find time, I will annotate several
modifications that I have made on SailCat, our Venture 15, . I'll start with
the latest mod while it's still fresh in my mind.
Modification 1
After sailing our cat for some time, I noticed that I am always adjusting the
rope halyard as a result of stretch in its length. Also, the halyard sheaf
(pulley) is mounted on one side of the mast and several inches below the top,
which causes binding when raising the main to the very top of its travel.

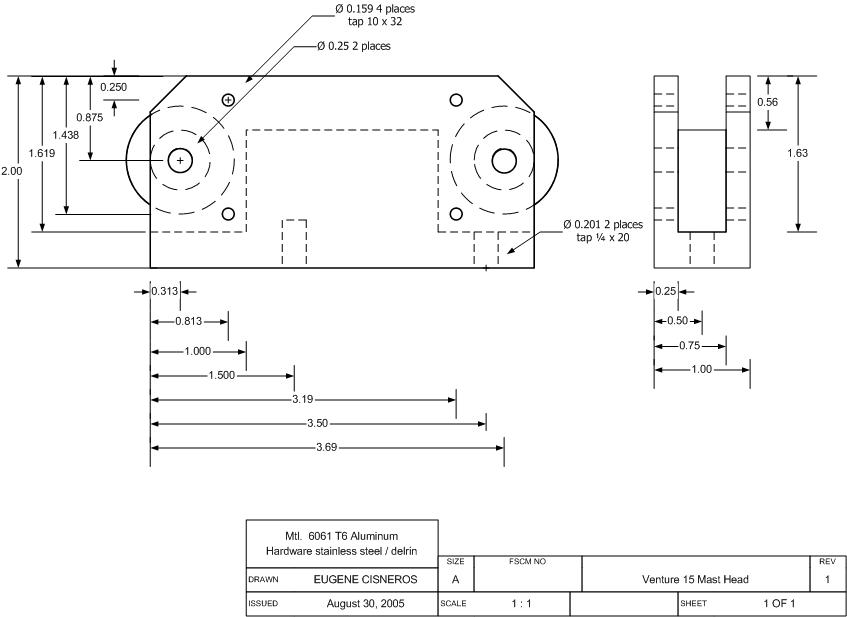

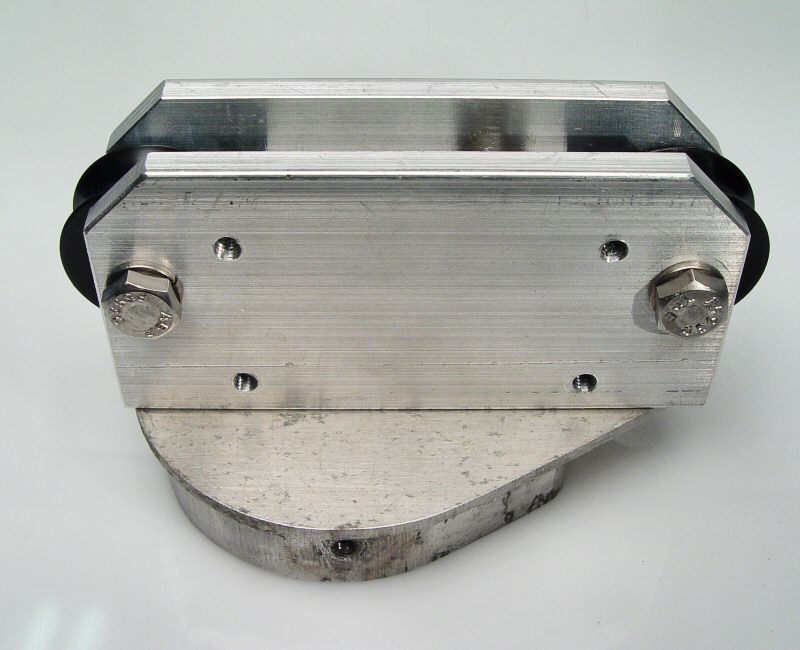

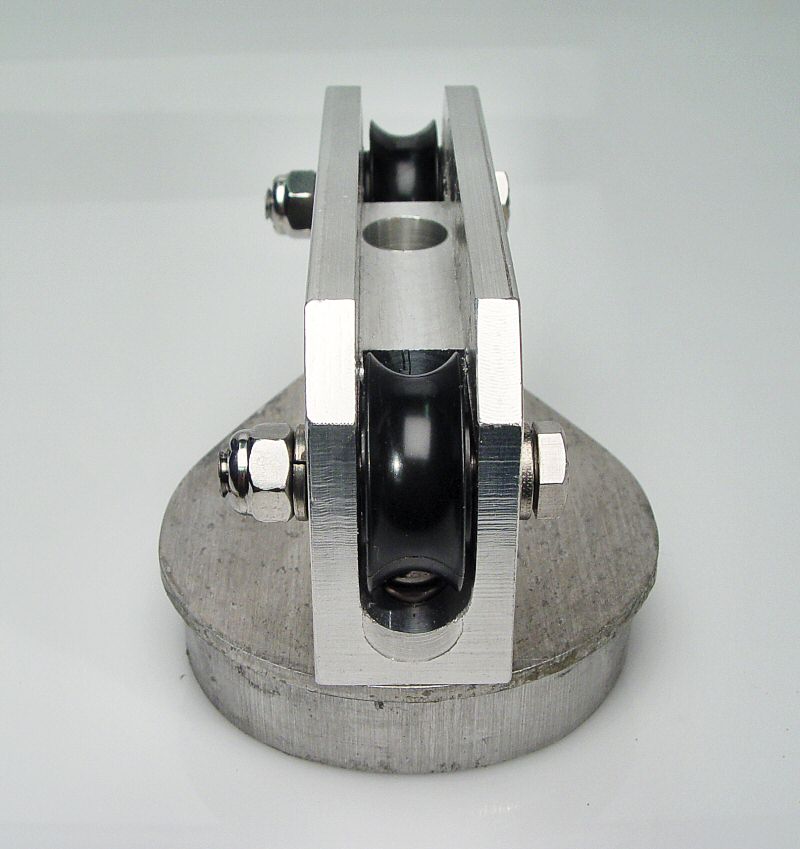

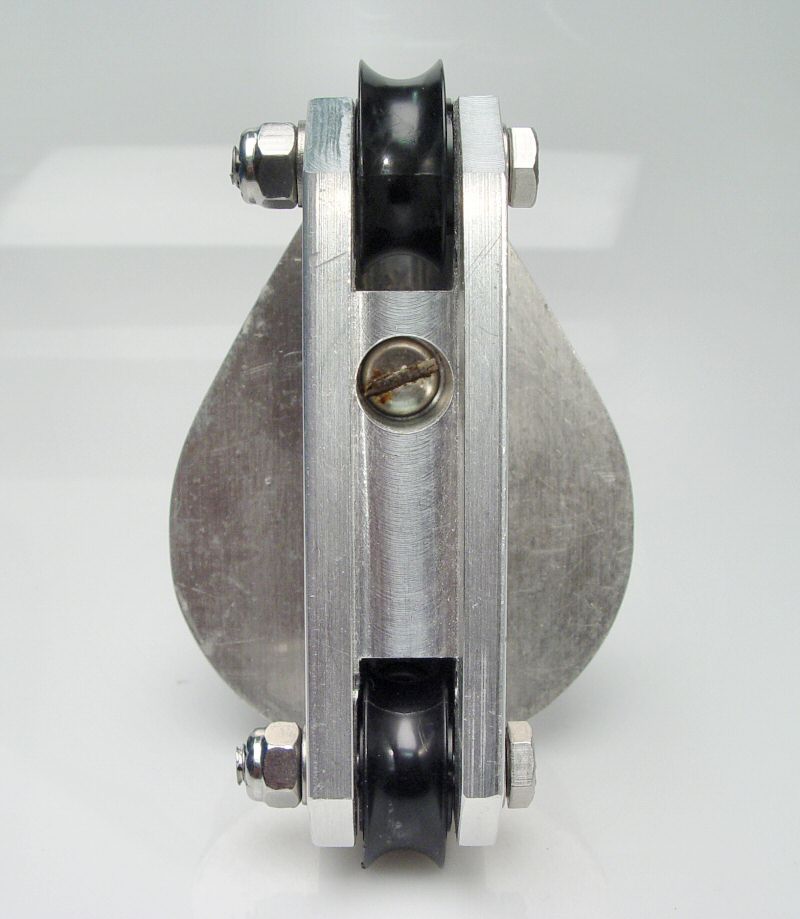

After checking out how Hobie does their halyard arrangement, I came up with the
following. One extra benefit of this arrangement is the gain of several
inches of sail and boom height. Here is the begining of the project and I
will add to it as we make progress.
